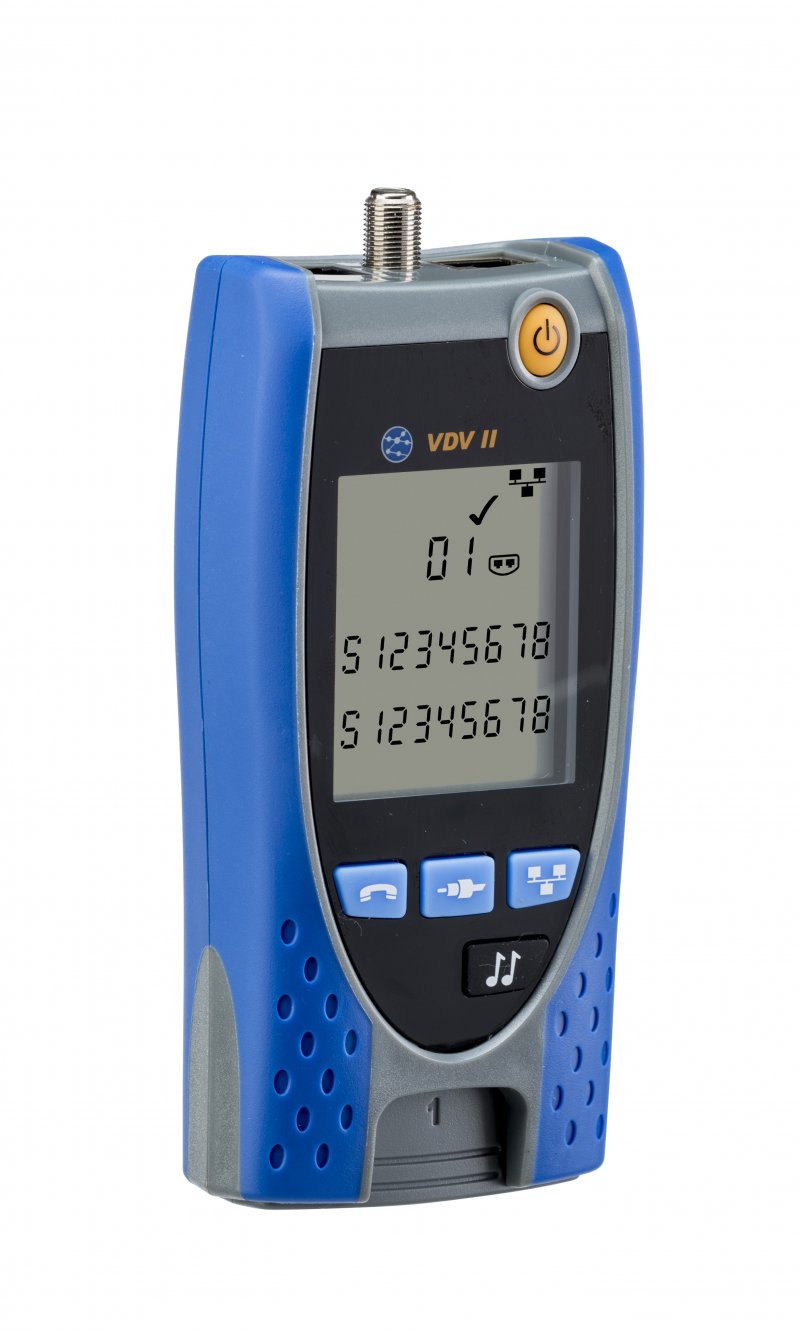

VDVII Wiremap Checker

A versatile tester for Voice, Data and Video cabling
Displays full results on an LCD display
Checks wiremap for miswires, split pairs, shorts and opens on voice and data cabling
6 pin RJ11/12 interface for voice cabling
8 pin RJ45 interface for data cabling
Checks continuity on video coaxial cabling
F-type interface for video coax cabling

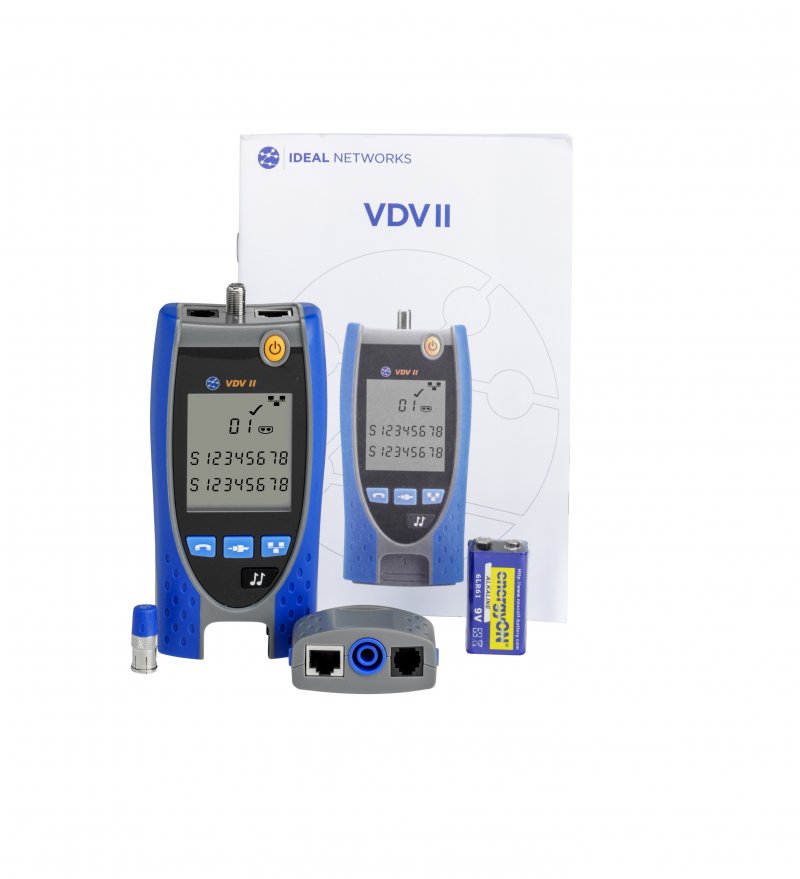

Two end testing. The tester includes a hand held display and one remote module
Kits of 12 RJ45 or coax remotes are available: these allow up to 12 points to be tested in sequence thus speeding up testing. The remotes are numbered and can be identified by the tester
A set of 24 remote identifiers are available for tracing/identifying cable runs. These remotes do not perform the wiremap check but facilitate the cable tracing and identification of undocumented network cabling
The VDVII also incorporates a tone generator function for cable tracing

Code	Type	Our Price:
VDVII	Wiremap checker and one remote	P.O.A			Enquire

Code	Type	Our Price:
VDVII-REM-12-RJ45WM	Set of 12 RJ45 remotes (wiremap)	P.O.A	Enquire
VDVII-REM-12-F	Set of 12 coax remotes	P.O.A	Enquire
VDVII-REM-24-RJ45ID	Set of 24 RJ45 identifier remotes (not wiremap)	P.O.A	Enquire

Code	Type	Our Price:
62-164	Amplifier probe for tone generator function	P.O.A			Enquire
