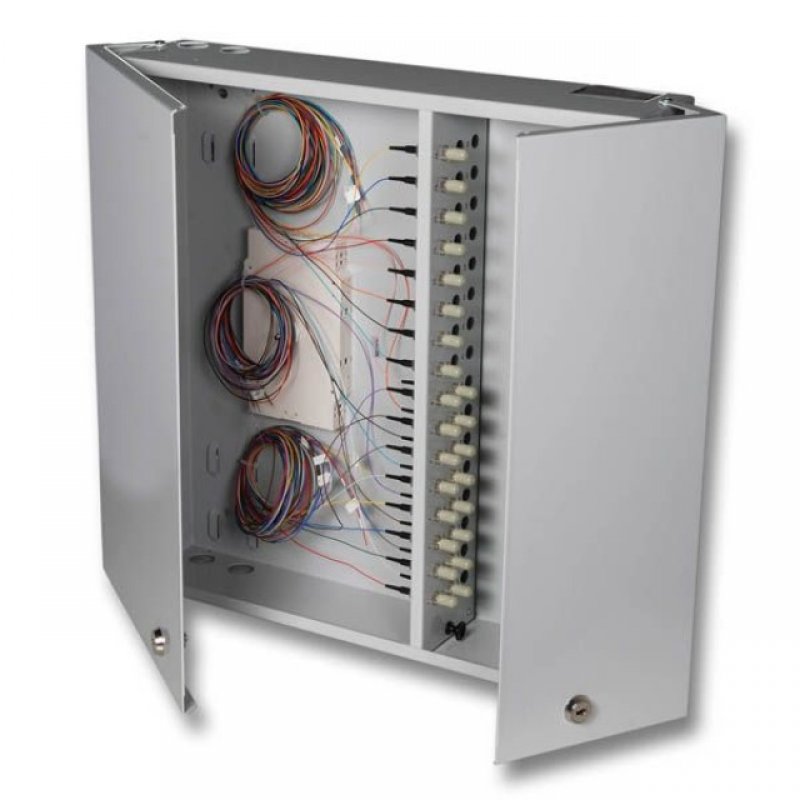

Large Wall Mounting Patch Panel - FC

Wall mounting fibre optic patch panels
Accommodates up to 48 fibres (in 4 x 12 fibre trays) with FC/PC connectivity (48 FC/PC adaptors)
Two hinged locking doors
The doors have different locks allowing control of access to the splicing and patching areas
The splicing area has two holes at both the top and bottom for PG16/M20 cable glands (one M20 gland included)
The patching area has rectangular cable entries at the top and bottom with foam sealing strips
445 x 445 x 95mm
Grey RAL7035
Supplied assembled with your choice of connector adaptors
Please order splice trays, splice protectors and pigtails separately
Part numbers are listed for 48, 36, 32 and 24 fibre panels. We can also supply 16, 12, 8, 4 and 2 fibre
Panels with FC/APC adaptors are also available

Singlemode

Code	Type	Connection	Our Price:
PWL-48-FC-48S-GY	48 fibre	48 s/mode FC adaptors	P.O.A	Enquire
PWL-48-FC-36S-GY	36 fibre	36 s/mode FC adaptors	P.O.A	Enquire
PWL-48-FC-32S-GY	32 fibre	32 s/mode FC adaptors	P.O.A	Enquire
PWL-48-FC-24S-GY	24 fibre	24 s/mode FC adaptors	P.O.A	Enquire
