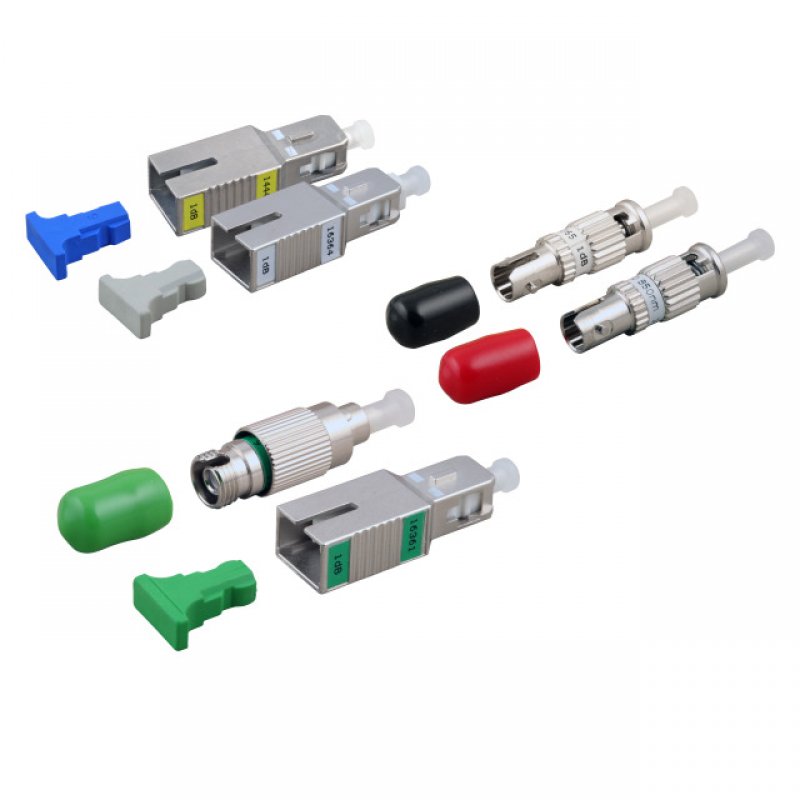

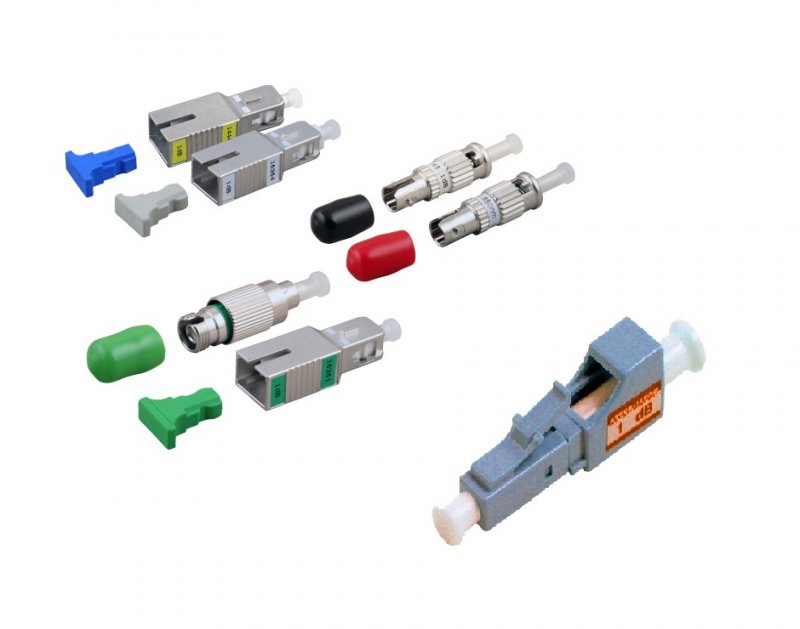

Male - female 'buildout' style singlemode attenuators
FC, LC, SC, ST, FC/APC and SC/APC style. MU also available upon request
1310nm and 1550nm
Return loss 45dB (60dB for APC)
Attenuation tolerance ±0.4dB (1 & 2dB), ±0.5dB (3dB - 14dB), ±0.7dB (15 - 25dB)
Available with 1dB, 2dB, 3dB, 4dB, 5dB, 10dB, 15dB and 20dB attenuation. Other values available upon request

SC

Code	Type	Connection	Our Price:
ATN-SC-SM-MF-1DB	1dB	SC	P.O.A			Enquire
ATN-SC-SM-MF-2DB	2dB	SC	P.O.A			Enquire
ATN-SC-SM-MF-3DB	3dB	SC	P.O.A			Enquire
ATN-SC-SM-MF-4DB	4dB	SC	P.O.A			Enquire
ATN-SC-SM-MF-5DB	5dB	SC	P.O.A			Enquire
ATN-SC-SM-MF-10DB	10dB	SC	P.O.A			Enquire
ATN-SC-SM-MF-15DB	15dB	SC	P.O.A			Enquire
ATN-SC-SM-MF-20DB	20dB	SC	P.O.A			Enquire

FC

Code	Type	Connection	Our Price:
ATN-FC-SM-MF-1DB	1dB	FC	P.O.A			Enquire
ATN-FC-SM-MF-2DB	2dB	FC	P.O.A			Enquire
ATN-FC-SM-MF-3DB	3dB	FC	P.O.A			Enquire
ATN-FC-SM-MF-4DB	4dB	FC	P.O.A			Enquire
ATN-FC-SM-MF-5DB	5dB	FC	P.O.A			Enquire
ATN-FC-SM-MF-10DB	10dB	FC	P.O.A			Enquire
ATN-FC-SM-MF-15DB	15dB	FC	P.O.A			Enquire
ATN-FC-SM-MF-20DB	20dB	FC	P.O.A			Enquire

ST

Code	Type	Connection	Our Price:
ATN-ST-SM-MF-1DB	1dB	ST	P.O.A			Enquire
ATN-ST-SM-MF-2DB	2dB	ST	P.O.A			Enquire
ATN-ST-SM-MF-3DB	3dB	ST	P.O.A			Enquire
ATN-ST-SM-MF-4DB	4dB	ST	P.O.A			Enquire
ATN-ST-SM-MF-5DB	5dB	ST	P.O.A			Enquire
ATN-ST-SM-MF-10DB	10dB	ST	P.O.A			Enquire
ATN-ST-SM-MF-15DB	15dB	ST	P.O.A			Enquire
ATN-ST-SM-MF-20DB	20dB	ST	P.O.A			Enquire

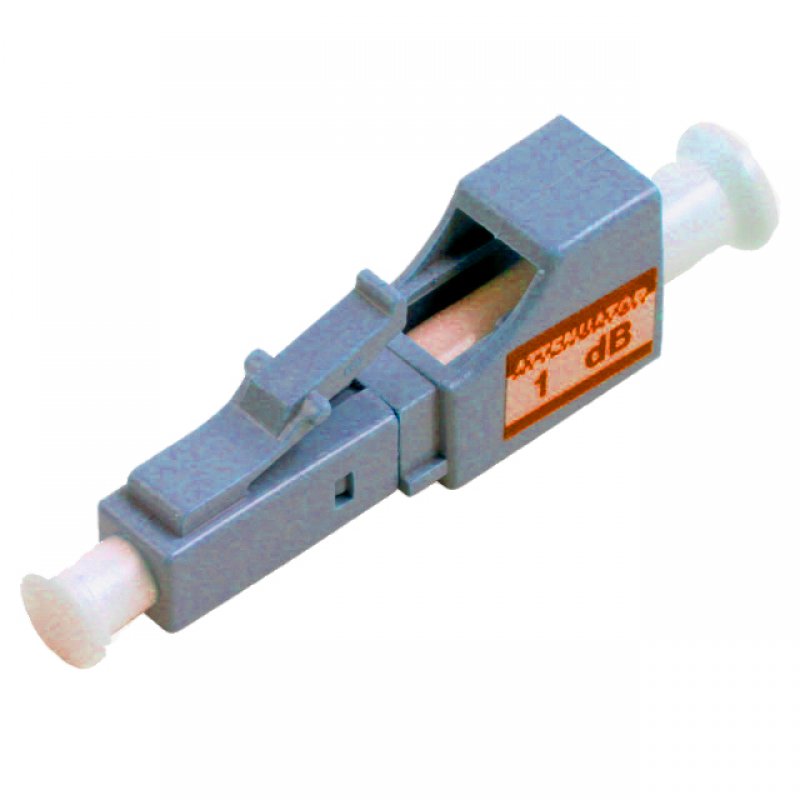

LC

Code	Type	Connection	Our Price:
ATN-LC-SM-MF-1DB	1dB	LC	P.O.A			Enquire
ATN-LC-SM-MF-2DB	2dB	LC	P.O.A			Enquire
ATN-LC-SM-MF-3DB	3dB	LC	P.O.A			Enquire
ATN-LC-SM-MF-4DB	4dB	LC	P.O.A			Enquire
ATN-LC-SM-MF-5DB	5dB	LC	P.O.A			Enquire
ATN-LC-SM-MF-10DB	10dB	LC	P.O.A			Enquire
ATN-LC-SM-MF-15DB	15dB	LC	P.O.A			Enquire
ATN-LC-SM-MF-20DB	20dB	LC	P.O.A			Enquire

SC/APC

Code	Type	Connection	Our Price:
ATN-SCA-SM-MF-1DB	1dB	SC/APC	P.O.A			Enquire
ATN-SCA-SM-MF-2DB	2dB	SC/APC	P.O.A			Enquire
ATN-SCA-SM-MF-3DB	3dB	SC/APC	P.O.A			Enquire
ATN-SCA-SM-MF-4DB	4dB	SC/APC	P.O.A			Enquire
ATN-SCA-SM-MF-5DB	5dB	SC/APC	P.O.A			Enquire
ATN-SCA-SM-MF-10DB	10dB	SC/APC	P.O.A			Enquire
ATN-SCA-SM-MF-15DB	15dB	SC/APC	P.O.A			Enquire
ATN-SCA-SM-MF-20DB	20dB	SC/APC	P.O.A			Enquire

FC/APC

Code	Type	Connection	Our Price:
ATN-FCA-SM-MF-1DB	1dB	FC/APC	P.O.A			Enquire
ATN-FCA-SM-MF-2DB	2dB	FC/APC	P.O.A			Enquire
ATN-FCA-SM-MF-3DB	3dB	FC/APC	P.O.A			Enquire
ATN-FCA-SM-MF-4DB	4dB	FC/APC	P.O.A			Enquire
ATN-FCA-SM-MF-5DB	5dB	FC/APC	P.O.A			Enquire
ATN-FCA-SM-MF-10DB	10dB	FC/APC	P.O.A			Enquire
ATN-FCA-SM-MF-15DB	15dB	FC/APC	P.O.A			Enquire
ATN-FCA-SM-MF-20DB	20dB	FC/APC	P.O.A			Enquire
