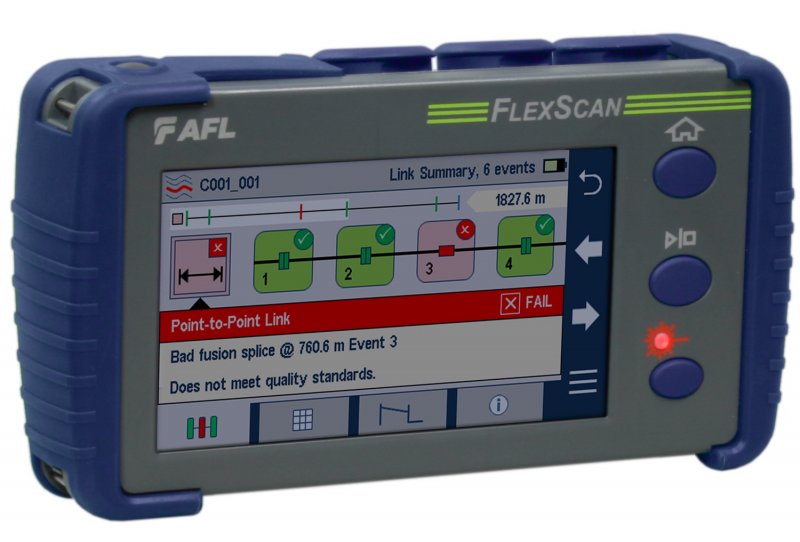

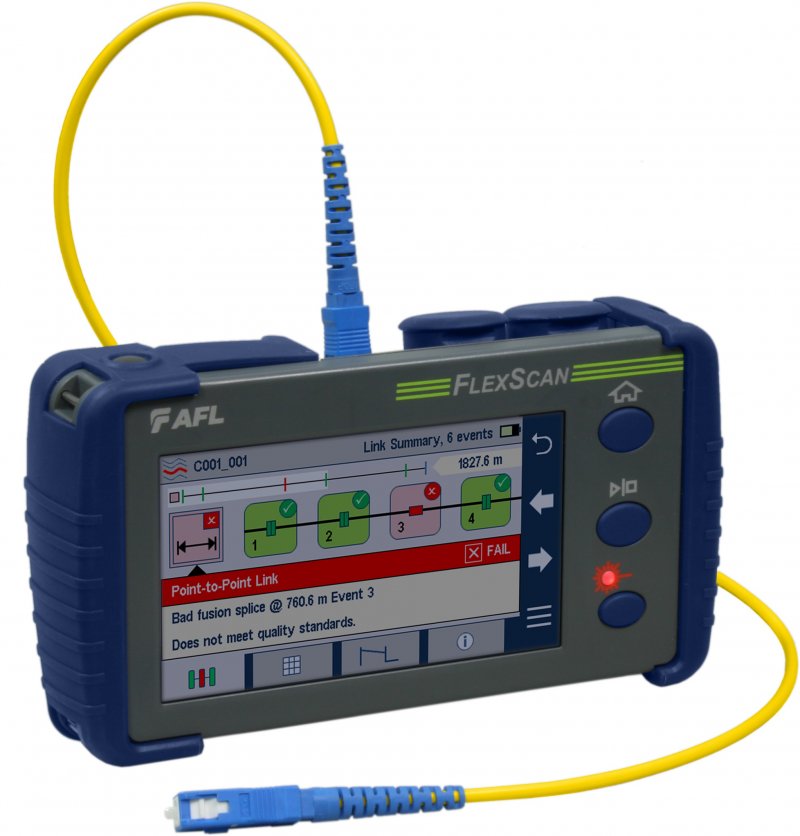

FlexScan Pocket-Sized Quad Multimode & Singlemode OTDR
.jpg)
- Pocket-sized and affordable Quad OTDR for multimode and singlemode fibre testing
- Fast and accurate network characterisation or fault location
- Results are presented as an easy to understand intuitive icon-based LinkMap display for easy interpretation of events with pass/fail results
- Dual wavelength multimode 850/1300nm (29/29dB dynamic range) and singlemode 1310/1550nm (37/36dB dynamic range)
- <=0.8m event deadzone
- OTDR test ports have SC connectors (interchangeable). FC, LC and ST connectors can be ordered separately. Optional port savers can be fitted to protect the OTDR's fibre interfaces from scratches
- The OTDR includes Bluetooth/WiFi comms (but it can be supplied without Bluetooth/WiFi if preferred). This allows the OTDR to be used with the optional FOCIS Flex wireless probe allowing fibre end face automated inspection to be performed on the same platform as the OTDR. The Wifi option also allows transfer of test results to a PC by WiFi
- Test results can be transferred to a PC by USB or WiFi. TRM Test Results Manager PC software is included
- The instrument incorporates a visible fault locator with a universal 2.5mm ferrule port (e.g accepts SC, FC, ST ferrules)
- The FlexScan OTDR is supplied with SC connector ports (interchangeable), battery, charger, USB cable and soft carry case
- Options available include a power meter port and light source (the OTDR port being used as the light source port). The power meter is compatible with AFL's Wave ID light sources
- Bundle kits are also available with FOCIS Flex inspection, launch fibre rings and cleaning products. Please contact the sales team for details
